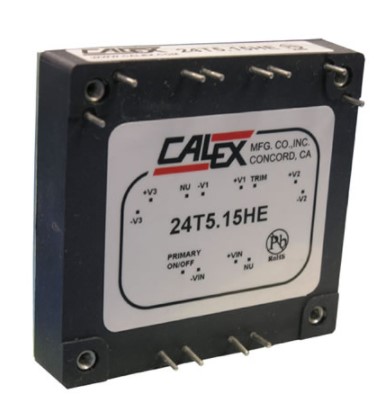

75 W Tripple Out Put DC-DC Converter
₨35,000.00
Features
Small size 2.4” x 2.28” x 0.53” half-brick package
Excellent Thermal Performance with metal baseplate
High Efficiency
Volt-seconds clamp and fast over voltage clamp
Pulse-by-pulse current limiting, short circuit
frequency foldback
Over-temperature protection
Auto-softstart
Low Noise
Constant frequency for normal operation
2:1 Input Voltage Range
Positive logic primary remote ON/OFF
Negative logic primary shutdown as an option
Very low temperature coefficient
Water Washable
Trimmable output voltage
Low Cost
5 Year Warranty
Available in both RoHS and Non-RoHS construction.
See ordering info below model selection chart.
Description
The Standard Triple HE DC/DC converter provides three
regulated low voltage DC outputs at high efficiency
and low cost. The unit has feedback from the +5 Vdc
output. The auxiliary outputs are cross regulated to the
main feedback loop (reference the block diagram). The
Standard Triple HE meets rigorous requirements in an
industry standard case size and is well suited for most
telecommunication applications.
The Standard Triple HE includes primary remote
on/off control plus threaded-through holes to allow
easy mounting or the addition of a heat sink for high
temperature use.
