URB2405YMD DC DC Converter
₨21,500.00

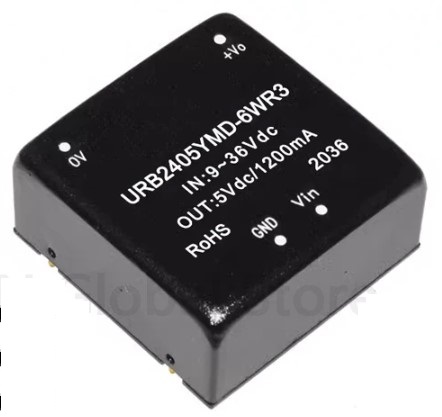

URB2405YMD DC DC Converter
The URB2405YMD is an isolated DC-DC converter module that converts a nominal 24 VDC input to a regulated 5 VDC output. It is designed for industrial automation, telecommunications, instrumentation, distributed power systems, and embedded applications requiring galvanic isolation and a wide input voltage range. Depending on the exact suffix (e.g., -5WR3, -6WR3, -15WR3, -20WR3), the output power rating differs while the input/output voltage remains the same.
3 in stock
Description
General Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Isolated DC-DC Converter Module |
| Model | URB2405YMD Series |
| Input Voltage (Nominal) | 24 VDC |
| Input Voltage Range | 9 to 36 VDC (4:1 wide input) |
| Output Voltage | 5 VDC (Regulated) |
| Number of Outputs | Single |
| Isolation Voltage | 1500 VDC (Input to Output) |
| Efficiency | Up to 90% (model dependent) |
| Output Regulation | ±1% typical |
| Operating Temperature | -40°C to +105°C (depending on model/output) |
| Storage Temperature | -55°C to +125°C |
| Mounting Type | Through-Hole |
| Package | 1 × 1 in DIP Module |
| Dimensions | Approximately 25.4 × 25.4 × 11.7 mm |
| Cooling | Natural Air Convection |
| Safety Certifications | CE, UL/cURus, CB (varies by model) |
| RoHS | Compliant |
Electrical Features
- Ultra-wide 4:1 input voltage range
- Regulated 5 VDC output
- High conversion efficiency (up to 90%)
- Low ripple and noise
- Continuous short-circuit protection with automatic recovery
- Over-current protection
- Output over-voltage protection
- Over-temperature protection
- Input under-voltage protection
- Input Pi filter
- Remote ON/OFF control (available on many models)
- Metal shielded package for reduced EMI
- Designed to meet industrial EMC requirements (e.g., CISPR22/EN55022 Class A)
