Description

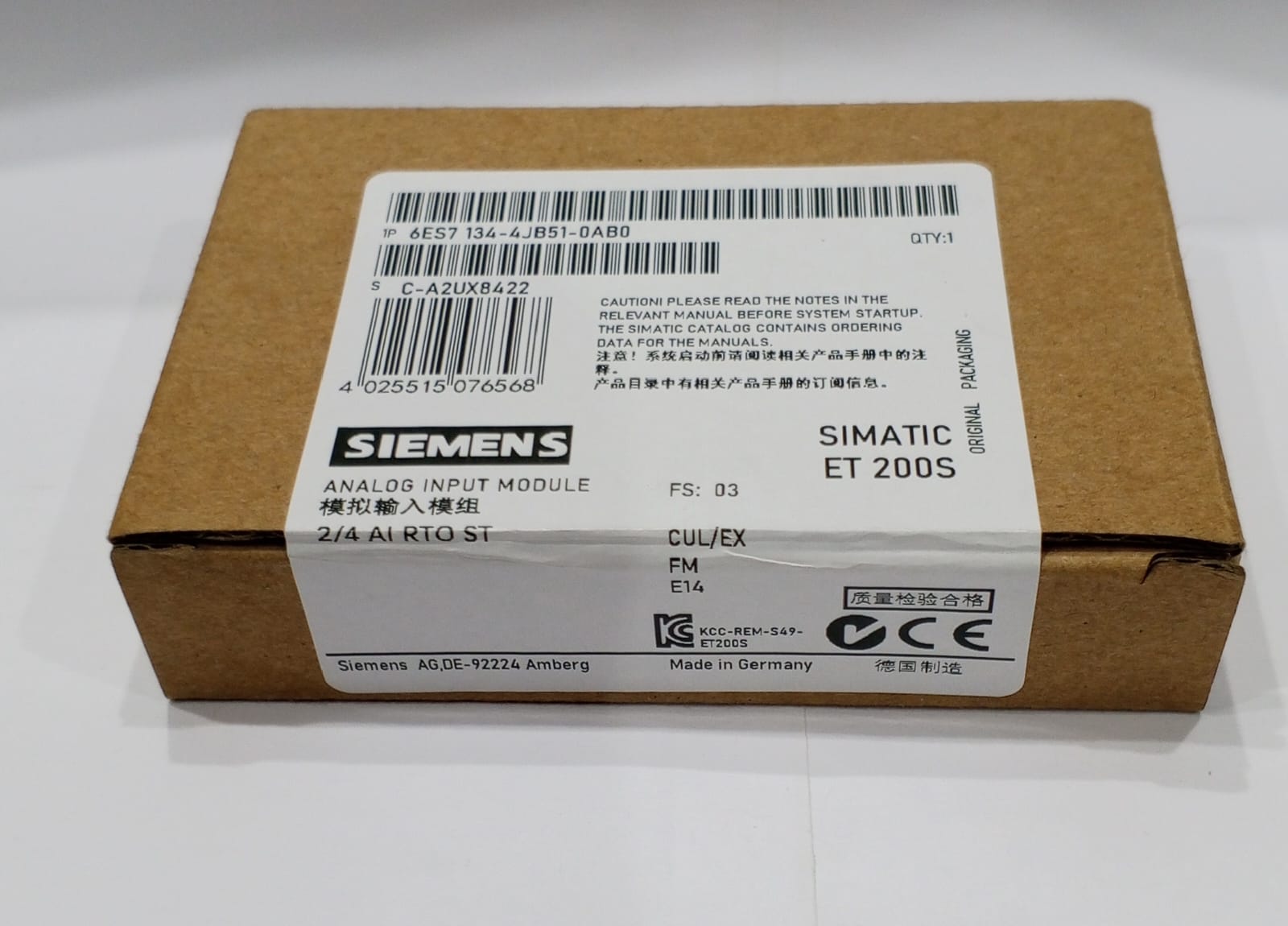

The Siemens 6ES7134-4JB51-0AB0 is a SIMATIC DP electronics module for the ET 200S distributed I/O system, specifically designed for Resistance Temperature Detection (RTD) and resistance measurement.

• Article Number: 6ES7134-4JB51-0AB0
• System: SIMATIC ET 200S Distributed I/O
• Inputs: 4 channels (2-wire) or 2 channels (3/4-wire connection)
• Supported Sensors: Pt100/Ni100 Standard and Climatic, Resistance 150/300/600


  Resolution: 15-bit + sign

• Voltage Supply: 24 V DC (via power module)
• Cycle Time: Approx. 110 ms/channel
• Width: 15 mm

• Measurement Type: Resistance thermometers and resistance measurement, according to the Siemens Manual 07/2008.
• Isolation: Channels are isolated from the backplane bus, but not from each other.
• Cable Length: Maximum 200m (shielded).
• Diagnostics: Supports group fault diagnostics (SF LED) and wire break monitoring.
• Wiring: Supports 2-, 3-, and 4-wire connection methods.

• This module (6ES7134-4JB51-0AB0) is compatible with the predecessor 2AI RTD ST (6ES7134-4JB50-0AB0) and can be used without changing the existing wiring, see
• It requires 7 bytes for parameterization, which differs from the 4-byte 6ES7134-4JB50-0AB0 version.
