HX3-82 Extraction, Removal & Insertion Tools Die Removal Tool
₨6,000.00
HX3-82 Extraction, Removal & Insertion Tools Die Removal Tool

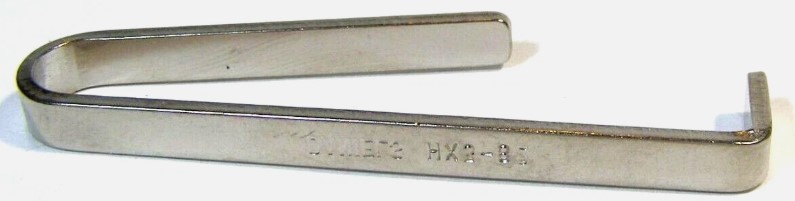

The HX3-82 Die Removal Tool is a specialized extraction tool manufactured by Daniels Manufacturing Corporation (DMC) for the safe removal of interchangeable crimping dies from DMC HX3 and HX4 hand crimp tools. It is designed to prevent damage to both the crimp tool and the precision dies during maintenance or die changes, making it an essential accessory for aerospace, military, and high-reliability electrical assembly applications.
1 in stock
Description
Technical Description
| Parameter | Specification |
|---|---|
| Part Number | HX3-82 |
| Product Type | Die Removal Tool |
| Manufacturer | Daniels Manufacturing Corporation (DMC) |
| Application | Removal of interchangeable crimping dies |
| Compatible Tools | DMC HX3 (M22520/10-01) and HX4 (M22520/5-01) hand crimp tools |
| Material | Hardened steel construction |
| Finish | Corrosion-resistant protective finish |
| Weight | Approximately 9 g (0.02 lb) |
| Dimensions | Approx. 2.8 in × 0.22 in × 0.8 in (71 × 5.6 × 20 mm) |
| ECCN | EAR99 |
| NSN | 5120-01-037-1407 |
Features
- Designed specifically for safe extraction of HX-series crimp dies.
- Prevents damage to die rails, knockout pins, and crimp tool frames.
- Compact, lightweight, and easy to carry in field maintenance kits.
- Manufactured from hardened steel for long service life.
- Suitable for aircraft wiring, aerospace, defense, and industrial wiring harness maintenance.
- Included as a standard accessory with many DMC HX3/HX4 crimp tool kits.
Operating Principle
- Open the crimp tool handles completely.
- Position the HX3-82 against the knockout pin to release the stationary die.
- Remove the stationary die by hand.
- Insert the HX3-82 between the movable die and tool body.
- Cycle the tool handle to eject the movable die safely.
- Install replacement dies by sliding them into the die rails until they lock into position.
Typical Applications
- Aerospace wiring harness assembly
- Aircraft maintenance and repair (MRO)
- Military electrical connector assembly
- Avionics manufacturing
- High-reliability cable and connector production
- Precision crimp tool maintenance
The HX3-82 is a simple but essential maintenance accessory that enables quick, safe, and repeatable die changes while preserving the precision alignment and service life of DMC HX3 and HX4 crimping tools.
